Re: [MW:34847] Submerged Arc Welding Process Wire/Flux Classification

By Materials & Welding

Dear prashant

That is corect

When you will prepare PQR with impact test and SAW process for carbon steel, you should be check temperature and compare with table 7 of ASME sect. IIC part SFA A5.17

Hope this can answer your question

Salam
Kurniatullah,IWE


Pada Kam, 4 Apr 2024, 16.51, Prashant <pprane.rane1@gmail.com> menulis:
For SAW welding wire/flux classification as an sample for discussion

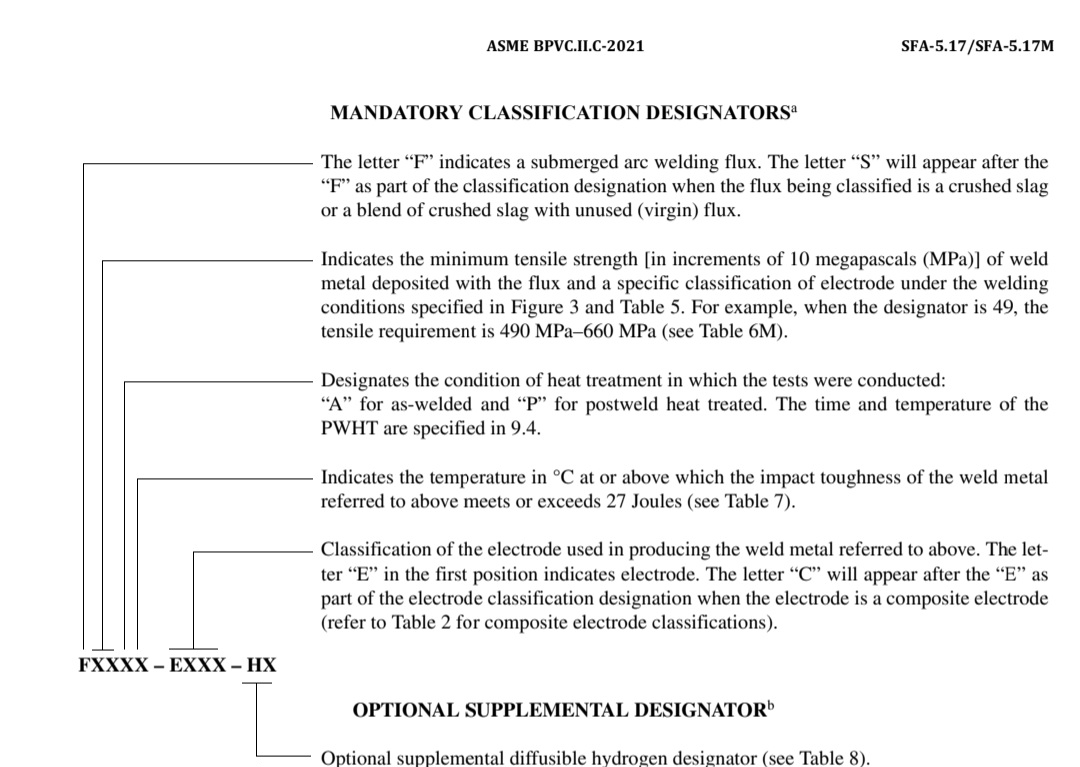

As per A 5.17 it is represented as F7P8-EH12K, this classification is given by the product manufacturer on the flux bag and is inline with the ASME Sec II Part C SFA 5.17
Where P is pwht and 8 is Minus 80 Deg F Impact test

I have a Procedure qualification which is Impact tested at Minus 50 Deg F, Qualified as per ASME Sec IX
as per QW 404.9
is it correct I write on my Procedure qualification record
F7P5-EH12K

Please advise above is correct,  if not I would like to understand more on this what should be written and clarification to increase knowledge

--
